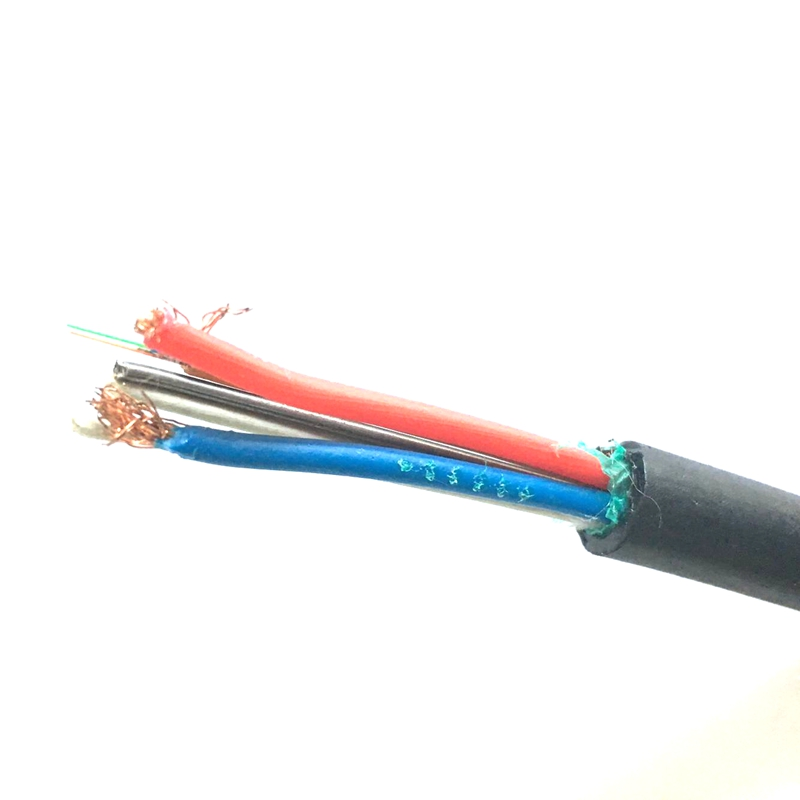

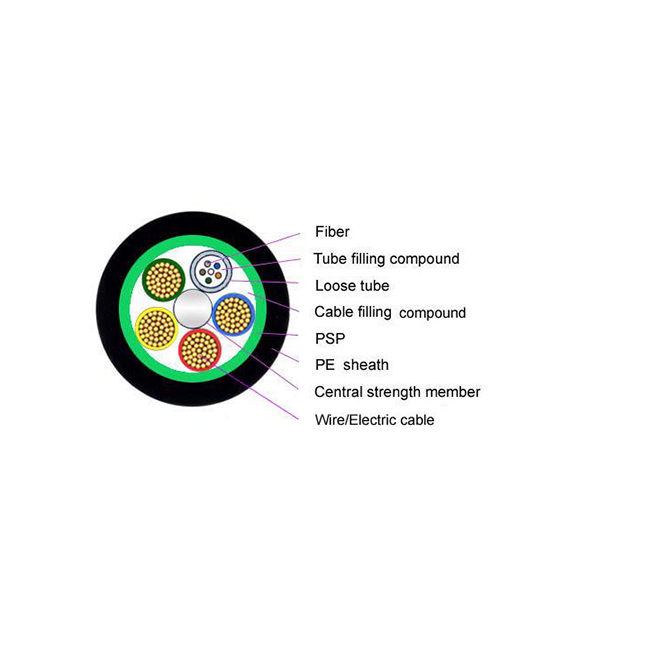

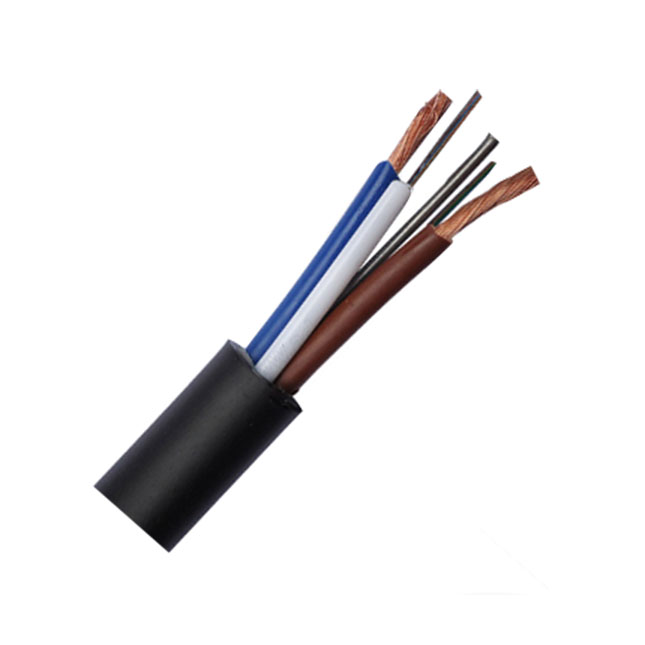

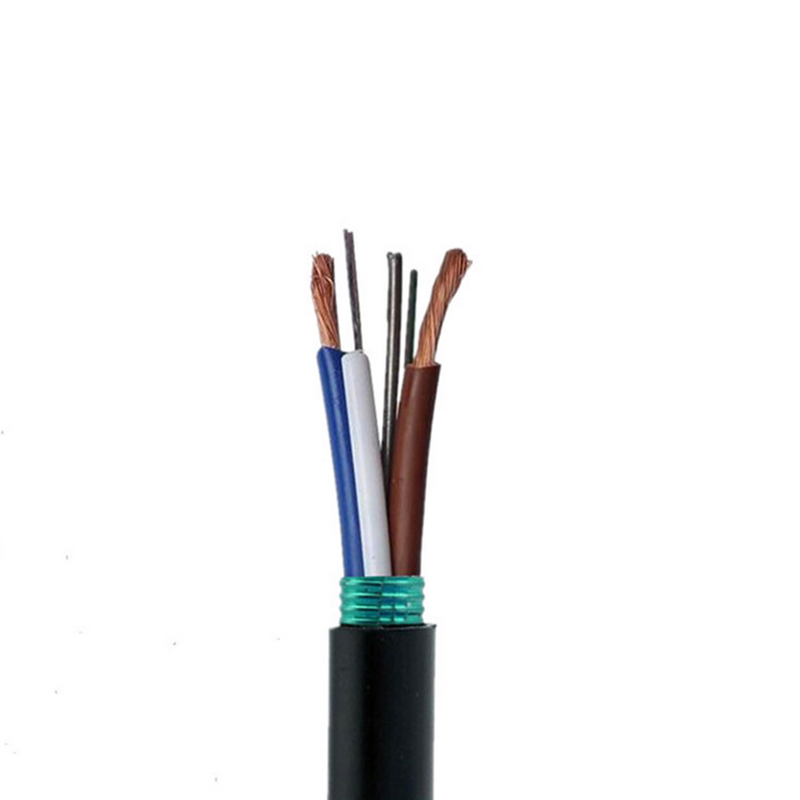

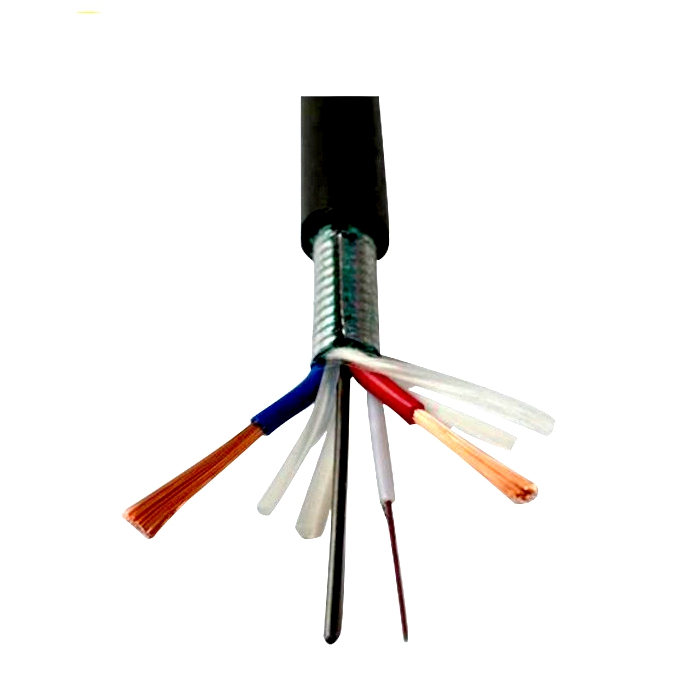

FTTA Hybrid fiber optic cable Copper Wire Power Photoelectric Composite Cables
Application:
Hybrid cable consist of one or two shielded DMX cable and a 3 x 0.75 mm2 or 3 x 1.5 mm 2 or 3 x 2.5 mm2 power cable. Power cores with a separatelly jacket. Operational ranges are e.g. lighting system.
Suitable for parallel power transmission and DMX signal, splicing with e.g. power and 3-pin XLR connectors.
| Cable model | HC01P075 | HC01P15 | HC01P25 |
| Hybrid Cable | |||
| Twisting | 1 DMX cable + 1 power cable + tracers | 1 DMX cable + 1 power cable + tracers | 1 DMX cable + 1 power cable + tracers |
| Taping | Textile fleece | Textile fleece | Textile fleece |
| Outer jacket | PVC,black,Ø16.5 | PVC,black,Ø17.5 | PVC,black,Ø20 |
| DMX Cable | |||
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 20 x 0.12mm | 20 x 0.12mm | 20 x 0.12mm |
| Conductor section | 0.23 mm2 | 0.23 mm2 | 0.23 mm2 |
| American wire gauge | 24 AWG | 24 AWG | 24 AWG |
| Insulation material | PE | PE | PE |
| Number of cores | 2 | 2 | 2 |
| Insulation colours | Red / Blue | Red / Blue | Red / Blue |
| Conductor twisting | Yes | Yes | Yes |
| Shielding 1 | AL/PET-foil | AL/PET-foil | AL/PET-foil |
| Shielding 2 | 16 x 6 x 0.12mm TC - Braided | 16 x 6 x 0.12mm TC - Braided | 16 x 6 x 0.12mm TC - Braided |
| Filling | Cotton yarn | Cotton yarn | Cotton yarn |
| Separator | None | None | None |
| Outer jacket | Flexible PVC | Flexible PVC | Flexible PVC |
| Outer jacket color | Black matt | Black matt | Black matt |
| Outer jacket dimension | Ø6.0 mm | Ø6.0 mm | Ø6.0 mm |
| Conductor resistance-100M | ≤ 7.9 ohm | ≤ 7.9 ohm | ≤ 7.9 ohm |
| Capacity (C/C) @ 1kHz | 47 pF/m | 47 pF/m | 47 pF/m |
| Characteristic impedance | 110 ohm | 110 ohm | 110 ohm |
| Power Cable | |||
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 24 x 0.2mm | 48 x 0.2mm | 49 x 0.25mm |
| Conductor section | 0.75 mm2 | 1.5 mm2 | 2.5 mm2 |
| Insulation material | PVC | PVC | PVC |
| Number of cores | 3 | 3 | 3 |
| Jacket | PVC,Black,Ø6.8 | PVC,Black,Ø8 | PVC,Black,Ø10.5 |
| Mechanical characteristics | |||
| Temperature range | fixed installation | -25 °C to +80 °C | |
| flexible installation | -20 °C to +70 °C | ||
| Bending radius | fixed installation | 10 x outer diameter | |
| flexible installation | 12 x outer diameter | ||
